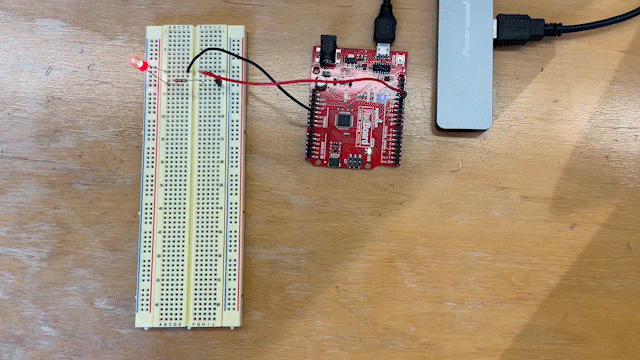

Arduino Lab - Blink

For the blink practice I followed the instruction on the book and had not too much trouble in understanding.

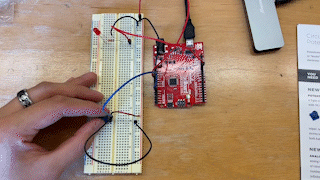

Arduino Lab - Potentiometer

During the practice I realized I was not familiar with Analog concept and need for variable. (And I was still confused whether it’s C or JS). At first thought it was not working, but later figured out sensor controls the delayValue on the code. Later when I tried differently by connecting to digital input instead, it didn't work.


int sensorPin = A0;    // The potentiometer is connected to analog pin 0
int ledPin = 13;      // The LED is connected to digital pin 13
int sensorValue;    //We declare another integer variable to store the value of the potentiometer

void setup() // this function runs once when the sketch starts up
{
    pinMode(ledPin, OUTPUT);
}

void loop() // this function runs repeatedly after setup() finishes
{
    sensorValue = analogRead(sensorPin);

    digitalWrite(ledPin, HIGH);     // Turn the LED on
    delay(sensorValue);             // Pause for sensorValue in milliseconds
    digitalWrite(ledPin, LOW);      // Turn the LED off
    delay(sensorValue);             // Pause for sensorValue in milliseconds
}


Arduino Lab - Variable Resistor Censorss

Through this practice, I tried to have more understanding on censors, variable resistors and how to use multimeter as well. I made the setup referencing the guide on the github page, however, failed to do this practice. I tried heat sensor for the test and but did not got any result on change of resistor and volt.

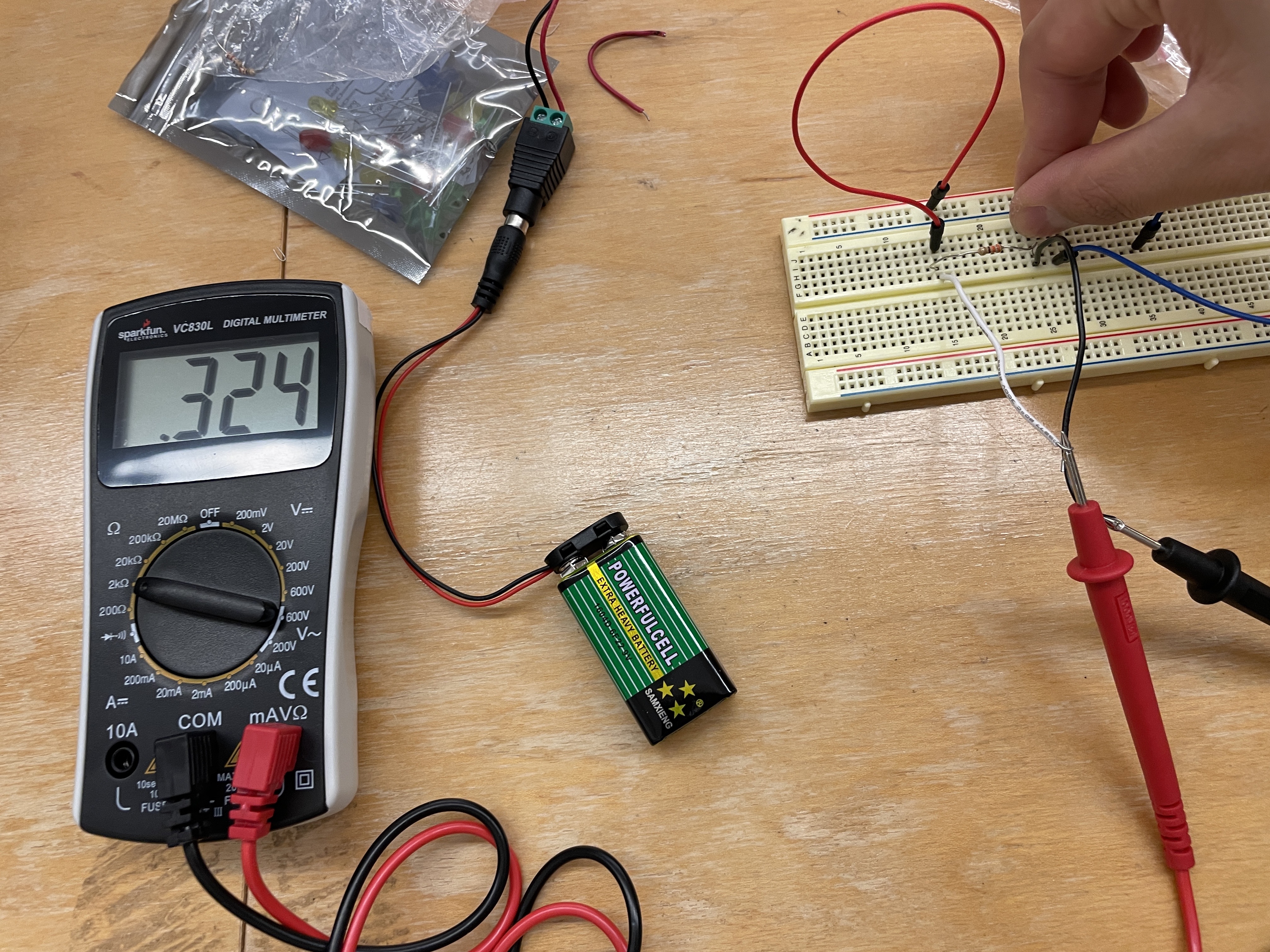

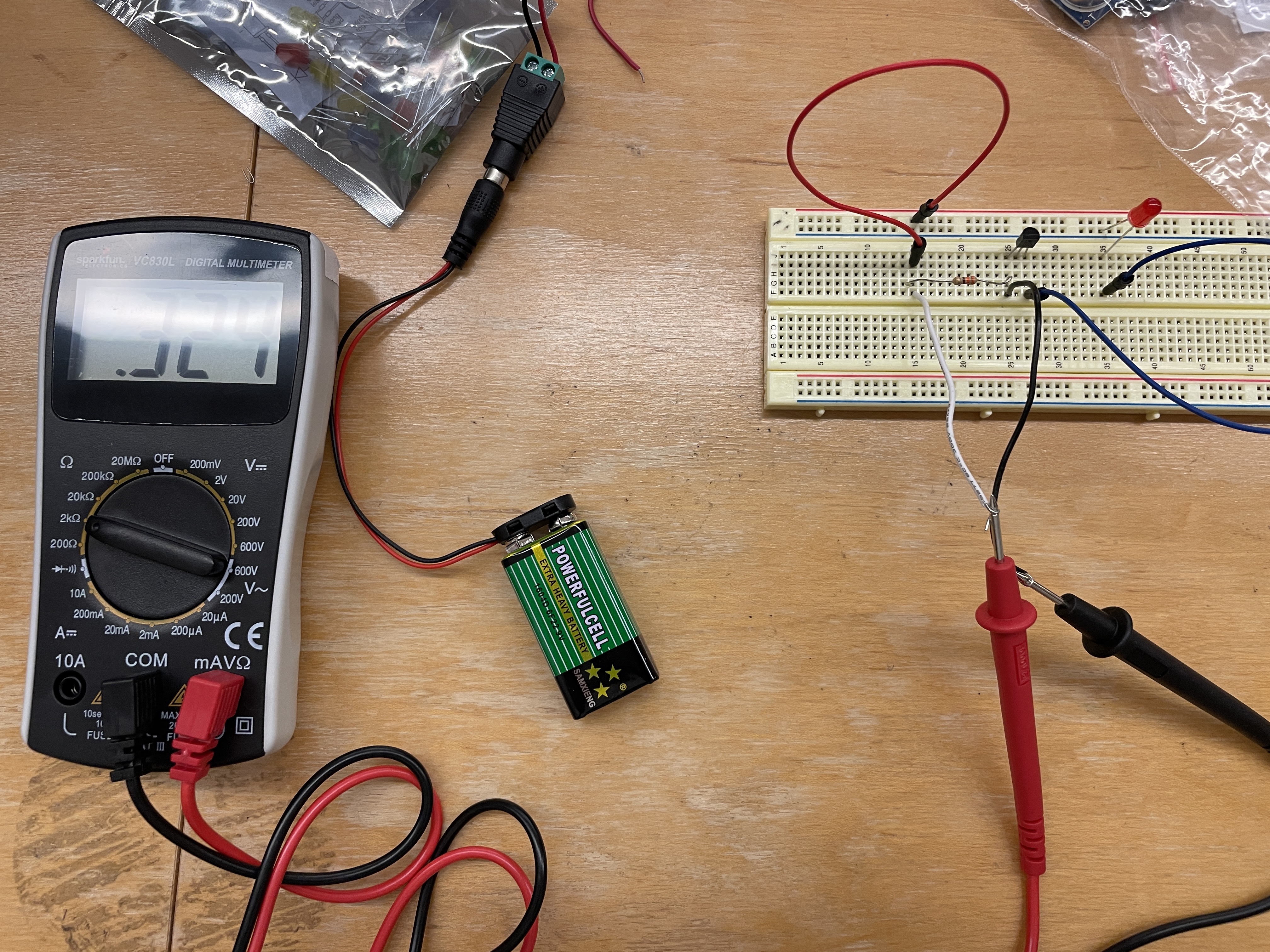

Resist Change

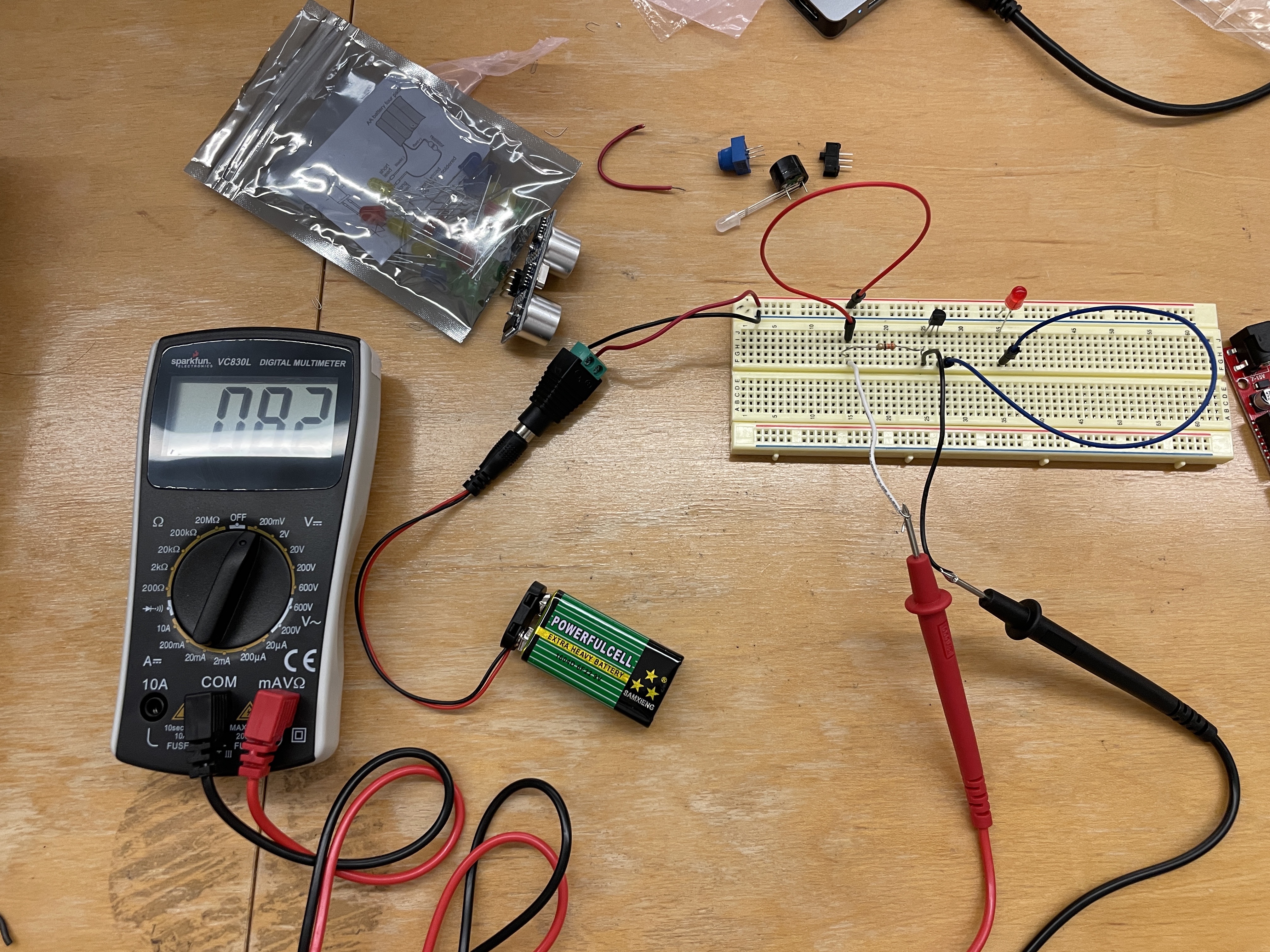

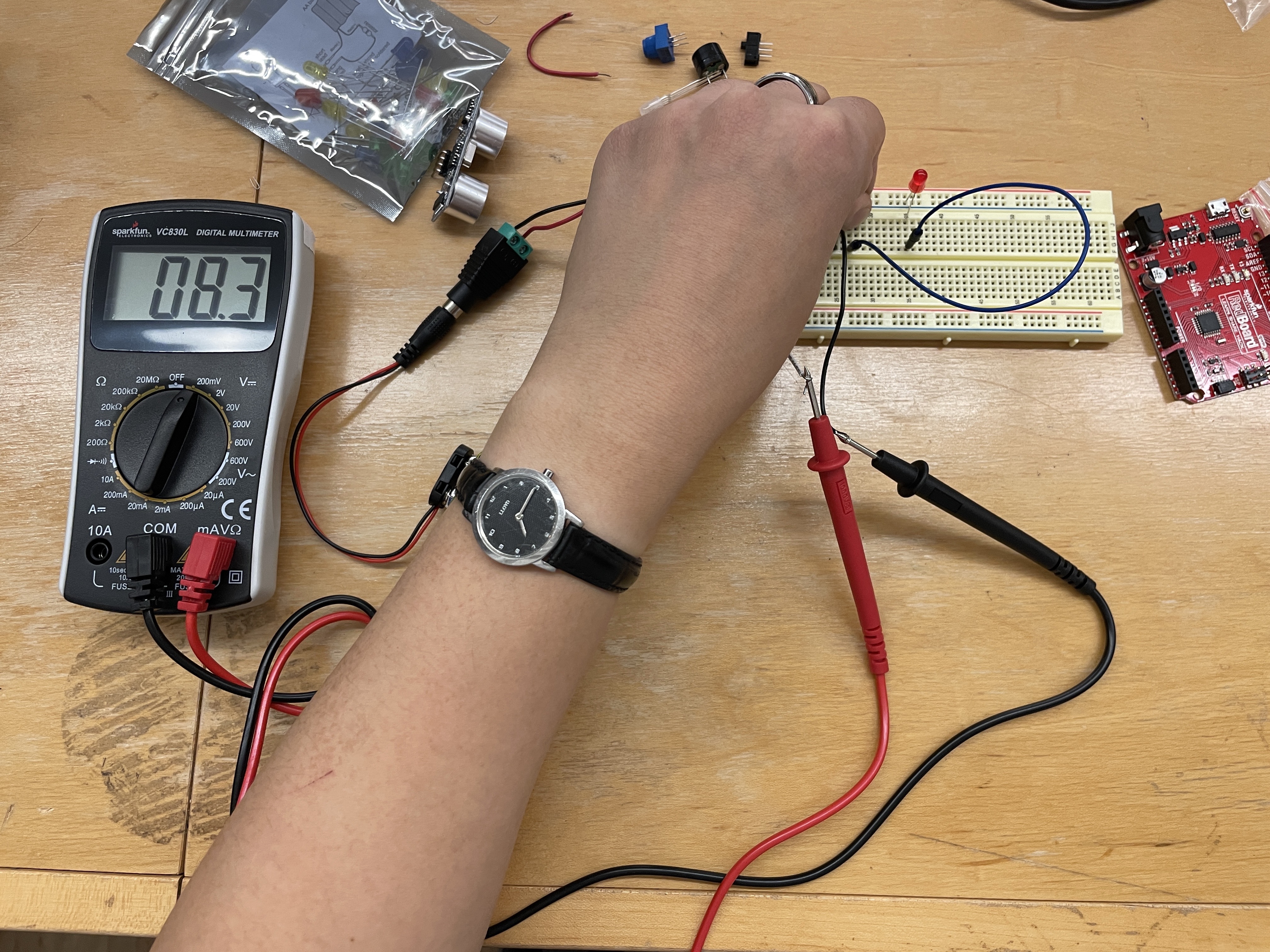

Volt Change

I also tried using the potentiometer I previously used, which did not work as well.

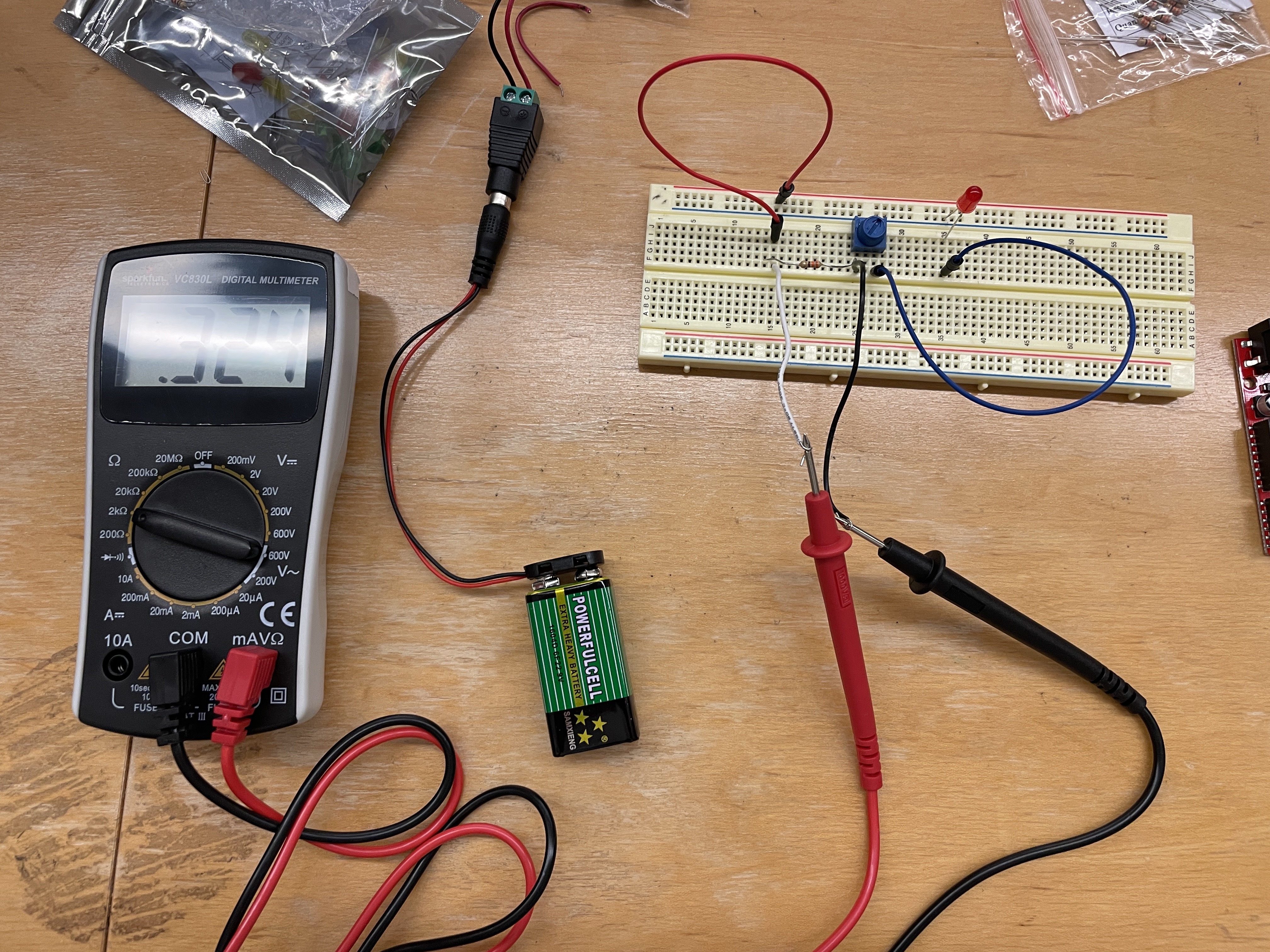

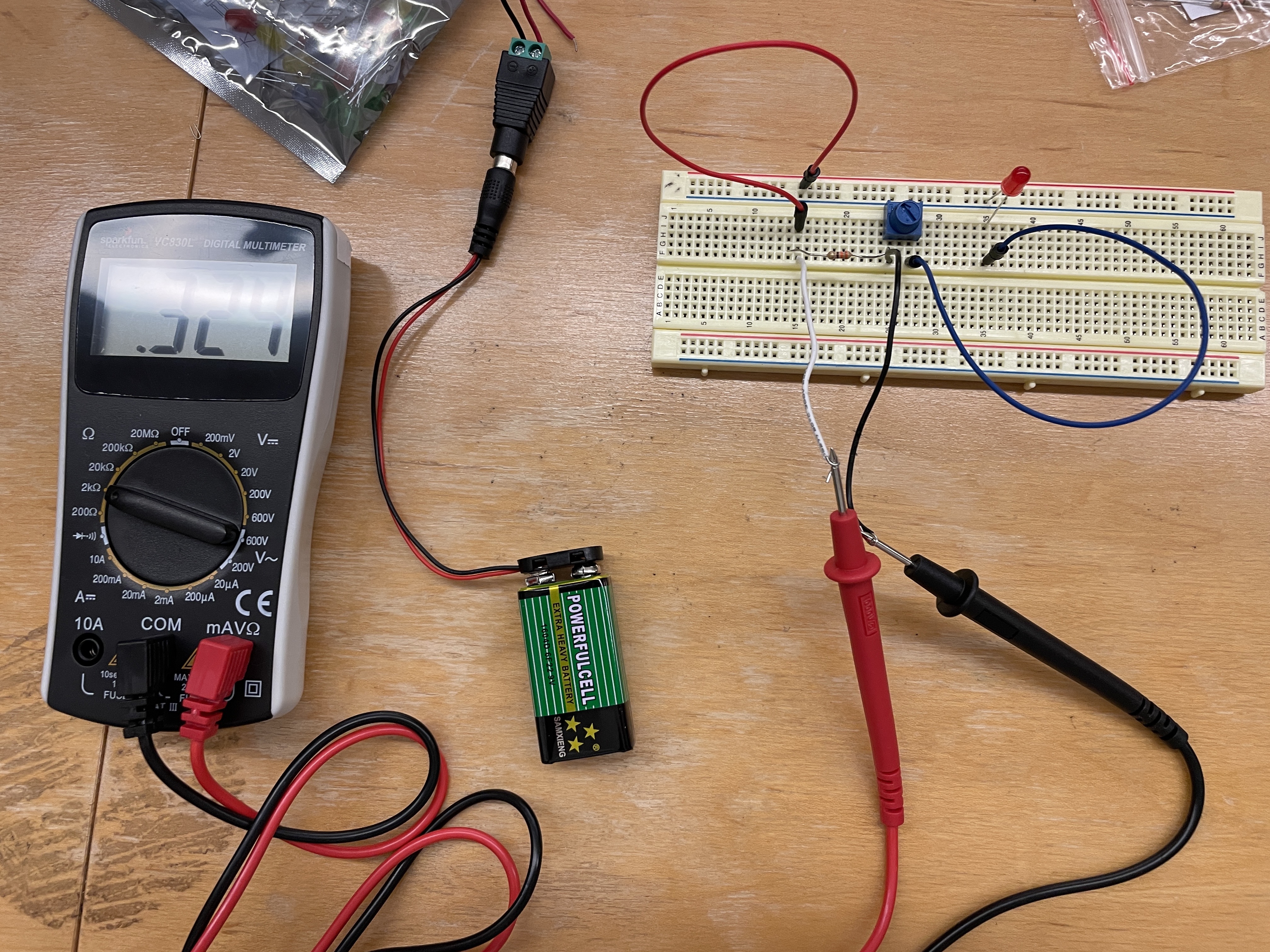

Resist Change

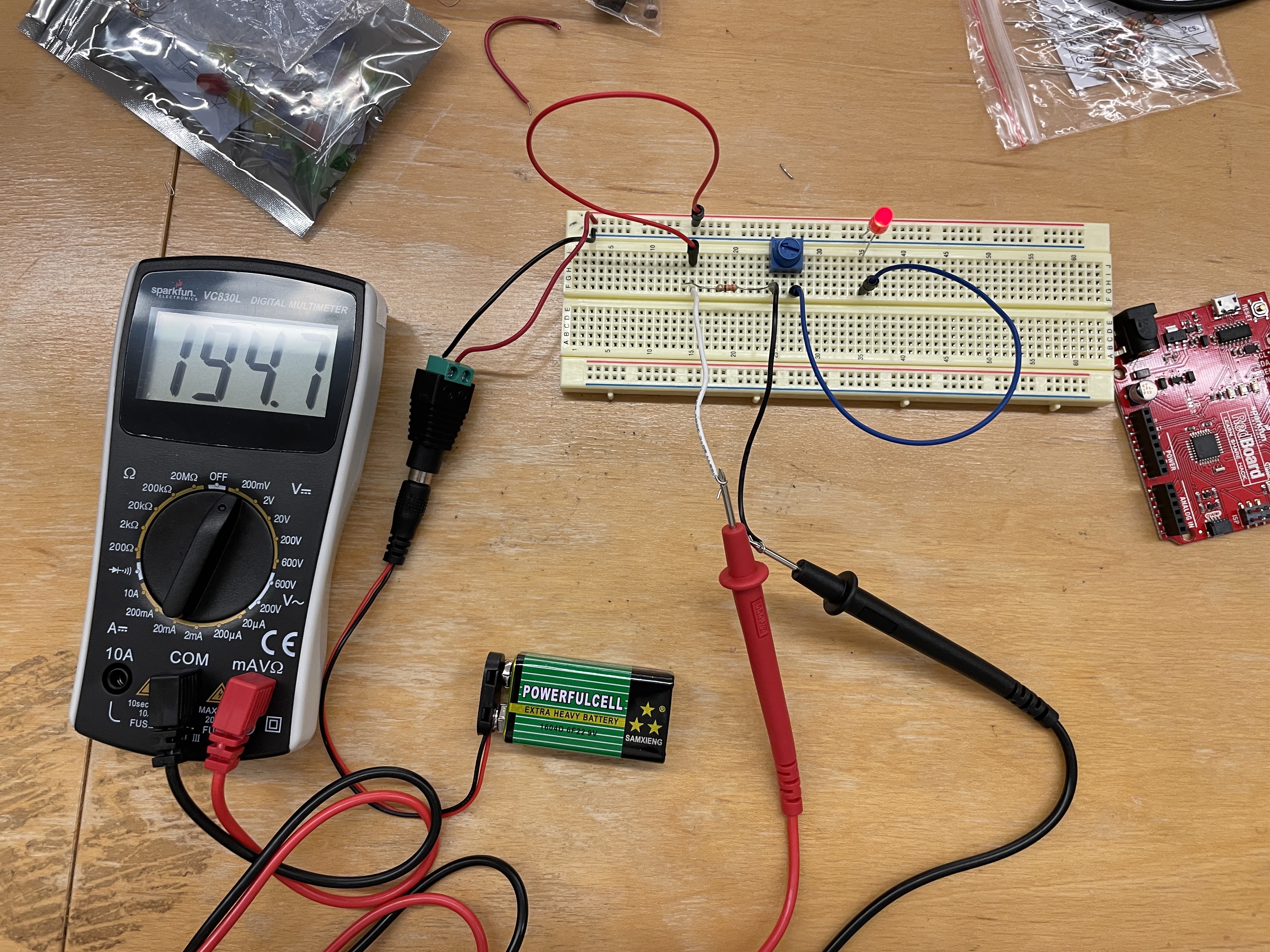

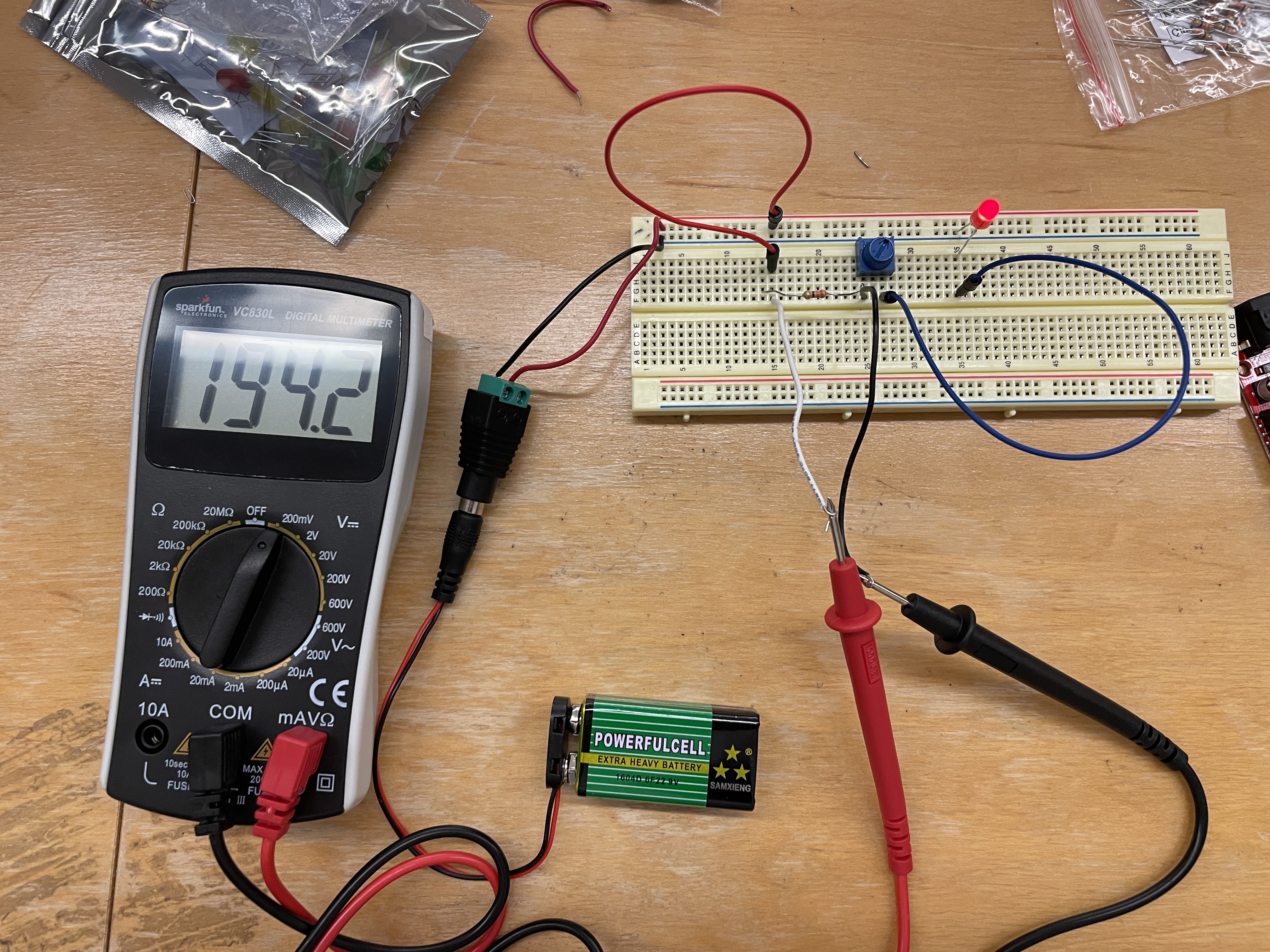

Volt Change

Conclusion

For this practice I did not succeed on seeing the result on the multimeter. That being said, I made myself more familiar with multimeter. I believe another trial with pressure sensor would be helpful for the better understanding of this concept.
